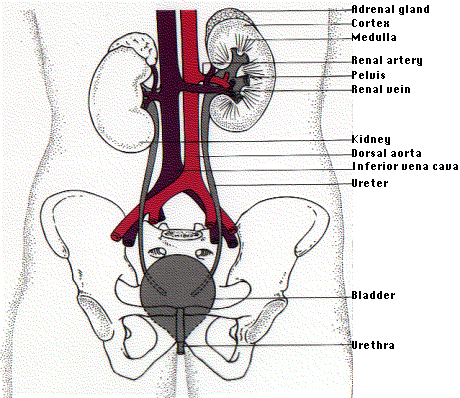

The Kidney

• are two bean-shaped organs, one on each side of the backbone.
• Represent about 0.5% of the total weight of the body,
• but receive 20–25% of the total arterial blood pumped by the heart.
• Each contains from one to two million nephrons.

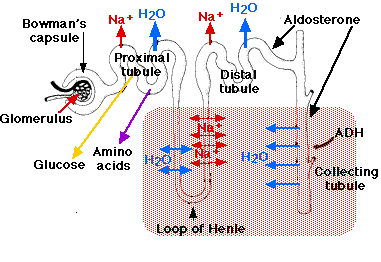

The Nephron

• Bowman's capsule.  Located at the closed end, the wall of the nephron is pushed in forming a double-walled chamber.
• Glomerulus.  A capillary network within the Bowman's capsule. Blood leaving the glomerulus passes into a second capillary network (not shown in the figure) surrounding the
• Proximal convoluted tubule. Coiled and lined with cells carpeted with microvilli and stuffed with mitochondria.
• Loop of Henle.  It makes a hairpin turn and returns to the
• Distal convoluted tubule, which is also highly coiled and surrounded by capillaries.
• Collecting tubule. It leads to the pelvis of the kidney from where urine flows to the bladder and, periodically, on to the outside world.

Formation of Urine

• filtering the blood of its small molecules and ions and then
• reclaiming the needed amounts of useful materials.
• Surplus or waste molecules and ions are left to flow out as urine.

• ~1,300 g of NaCl
• ~400 g NaHCO₃
• ~180 g glucose
• almost all of the 180 liters of water that entered the tubules.

• Blood enters the glomerulus under pressure.
• This causes water, small molecules (but not macromolecules like proteins) and ions to filter through the capillary walls into the Bowman's capsule. This fluid is called nephric filtrate. As the table shows, it is simply blood plasma minus almost all of the plasma proteins. Essentially it is no different from interstitial fluid.

• Nephric filtrate collects within the Bowman's capsule and then flows into the proximal tubule.
• Here all of the glucose, and amino acids, >90% of the uric acid, and ~60% of inorganic salts are reabsorbed by active transport.
  • The active transport of Na⁺ out of the proximal tubule is controlled by angiotensin II.
  • The active transport of phosphate (PO₄^3-) is regulated (suppressed by) the parathyroid hormone.
• As these solutes are removed from the nephric filtrate, a large volume of the water follows them by osmosis (80–85% of the 180 liters deposited in the Bowman's capsules in 24 hours).
• As the fluid flows into the descending segment of the loop of Henle, water continues to leave by osmosis because the interstitial fluid is very hypertonic. This is caused by the active transport of Na⁺ out of the tubular fluid as it moves up the ascending segment of the loop of Henle.
• In the distal tubules, more sodium is reclaimed by active transport, and still more water follows by osmosis.

  back up to diagram

• Final adjustment of the sodium and water content of the body occurs in the collecting tubules.

Sodium

Water

• The hypertonic interstitial fluid surrounding the collecting tubules provides a high osmotic pressure for the removal of water.
• Transmembrane channels made of proteins called aquaporins are inserted in the plasma membrane greatly increasing its permeability to water. (When open, an aquaporin channel allows 3 billion molecules of water to pass through each second.)
• Insertion of aquaporin-2 channels requires signaling by the antidiuretic hormone (ADH; also known as arginine vasopressin or AVP).
  • ADH binds to receptors (called V2 receptors) on the basolateral surface of the cells of the collecting tubules.

    link to figure showing this class of receptor

  • Binding of the hormone triggers a rising level of cAMP within the cell.
  • This "second messenger" initiates a chain of events culminating in the insertion of aquaporin-2 channels in the apical surface of the cell.

• Anything that dehydrates the body, such as perspiring heavily,
  • increases the osmotic pressure of the blood;
  • turns on the ADH → V2 receptors → aquaporin-2 pathway.
  The result:
  • As little as 0.5 liter/day of urine may remain of the original 180 liters/day of nephric filtrate.
  • The concentration of salts in the urine can be as much as four times that of the blood. (But not high enough to enable humans to benefit from drinking sea water, which is saltier still.)
• If the blood should become too dilute (as would occur after drinking a large amount of water),
  • ADH secretion is inhibited.
  • The aquaporin-2 channels are taken back into the cell by endocytosis.
  • The result: a large volume of watery urine is formed (with a salt concentration as little as one-fourth of that of the blood).

Diabetes insipidus

• excretion of large amounts of a watery urine (as much as 30 liters — about 8 gallons — each day!)
• unremitting thirst.

• Insufficient secretion of ADH.
• Inheritance of two mutant genes for the ADH receptor (V2).
• Inheritance of two mutant genes for aquaporin-2.

Liddle's Syndrome

The most obvious effect of this rare, inherited disorder is extremely high blood pressure (hypertension). It is caused by a single mutant allele (therefore the syndrome is inherited as a dominant trait) encoding the aldosterone-activated sodium channel in the collecting tubules. The defective channel is always "on" so too much Na⁺ is reabsorbed and too little is excreted. The resulting elevated osmotic pressure of the blood produces hypertension.

Tubular Secretion

Although urine formation occurs primarily by the filtration-reabsorption mechanism described above, an auxiliary mechanism, called tubular secretion, is also involved.

The cells of the tubules remove certain molecules and ions from the blood and deposit these into the fluid within the tubules. Example: Both hydrogen ions (H⁺) and potassium ions (K⁺) are secreted directly into the fluid within the distal and collecting tubules. In each case the secretion is coupled to the ion-for-ion uptake of sodium ions (Na⁺).

• When the pH of the blood starts to drop, more hydrogen ions are secreted.
• If the blood should become too alkaline, secretion of H⁺ is reduced.
• In maintaining the pH of the blood within its normal limits of 7.3–7.4, the kidney can produce a urine with a pH as low as 4.5 or as high as 8.5.

The Kidney and Homeostasis

While we think of the kidney as an organ of excretion, it is more than that. It does remove wastes, but it also removes normal components of the blood that are present in greater-than-normal concentrations. When excess water, sodium ions, calcium ions, potassium ions, and so on are present, the excess quickly passes out in the urine. On the other hand, the kidneys step up their reclamation of these same substances when they are present in the blood in less-than-normal amounts. Thus the kidney continuously regulates the chemical composition of the blood within narrow limits. The kidney is one of the major homeostatic devices of the body.

Hormones of the Kidneys

• Erythropoietin (EPO)
• Calcitriol (1,25[OH]₂ Vitamin D₃), the active form of vitamin D

The Artificial Kidney

The artificial kidney uses the principle of dialysis to purify the blood of patients whose own kidneys have failed.

The left portion of the figure ("Dialysis unit") shows the mechanism used today in artificial kidneys. Small molecules like urea are removed from the blood because they are free to diffuse between the blood and the bath fluid, whereas large molecules (e.g., plasma proteins) and cells remain confined to the blood. The bath fluid must already have had essential salts added to it to prevent the dangerous loss of these ions from the blood. Note that blood and bath fluid flow in opposite directions across the dialysis membrane. This "counter-current" exchange maintains a diffusion gradient through the entire length of the system. An anticoagulant is added to the blood so it will not clot while passing through the machine. The anticoagulant is neutralized as the blood is returned to the patient.

• providing precise homeostatic control over the concentration of such vital ingredients as glucose and Na⁺
• secreting its hormones

An artificial kidney of the future?

In an attempt to solve these problems, a research team at the University of Michigan is experimenting with adding a "Bioreactor unit" to the dialysis unit. The bioreactor consists of many hollow, porous tubes on the inner wall of which is attached a monolayer of proximal tubule cells (derived from pigs). The dialysis bath fluid passes through the lumen of the tubes where molecules and ions can be picked up by the apical surface of the cells. Discharge of essential molecules and ions (as well as hormones) at the basolateral surface of the cells places these materials back in the blood (just as the proximal tubule cells in the nephron normally do). So far, all the testing has been done using dogs, but the results seem promising.

• the shortage of donors suitably matched for histocompatibility molecules
• the problem of graft rejection by the recipient's immune system that — unless the donor and recipient are identical twins — "sees" the kidney as "foreign" even when they share the same major histocompatibility molecules.
